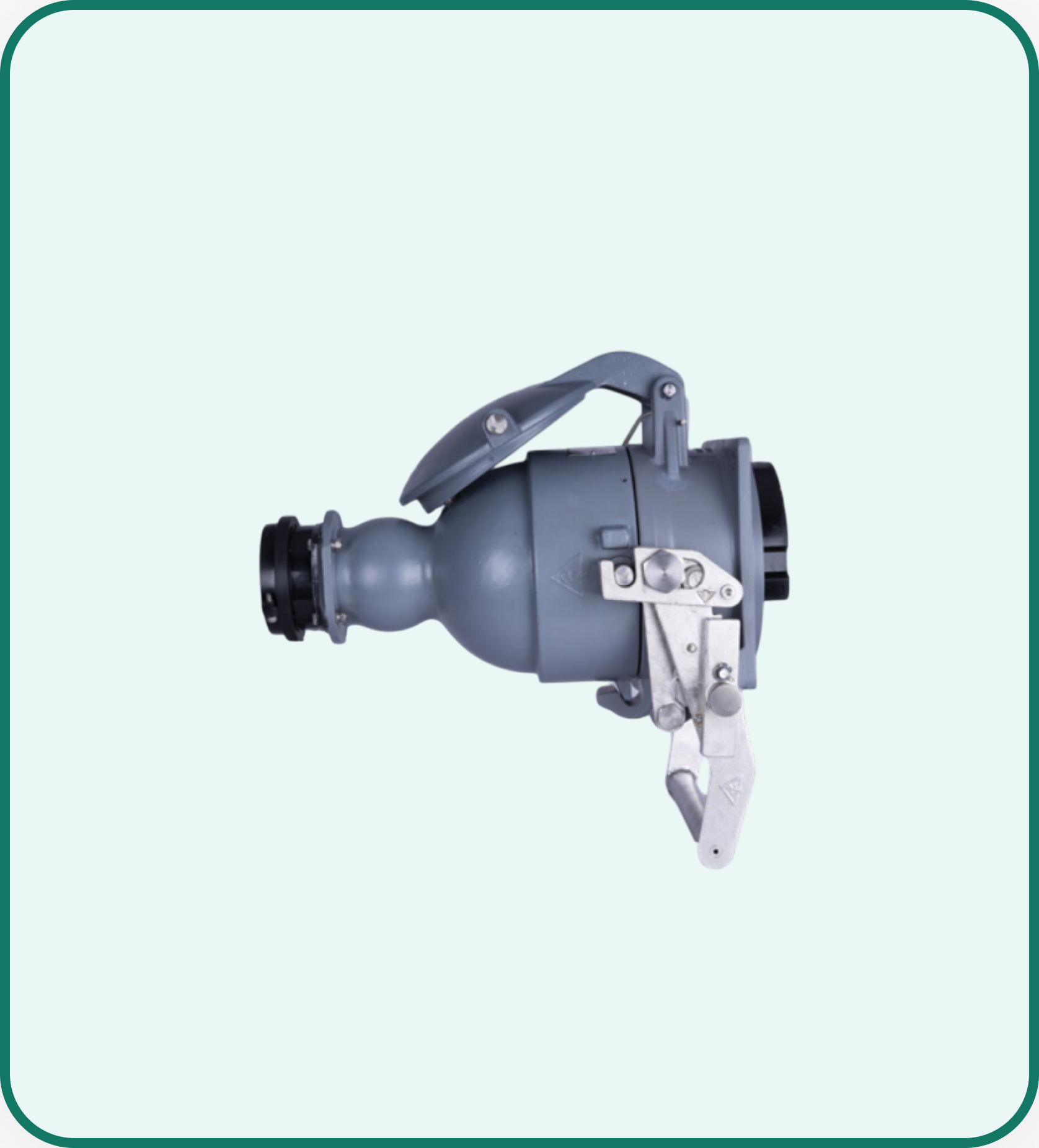

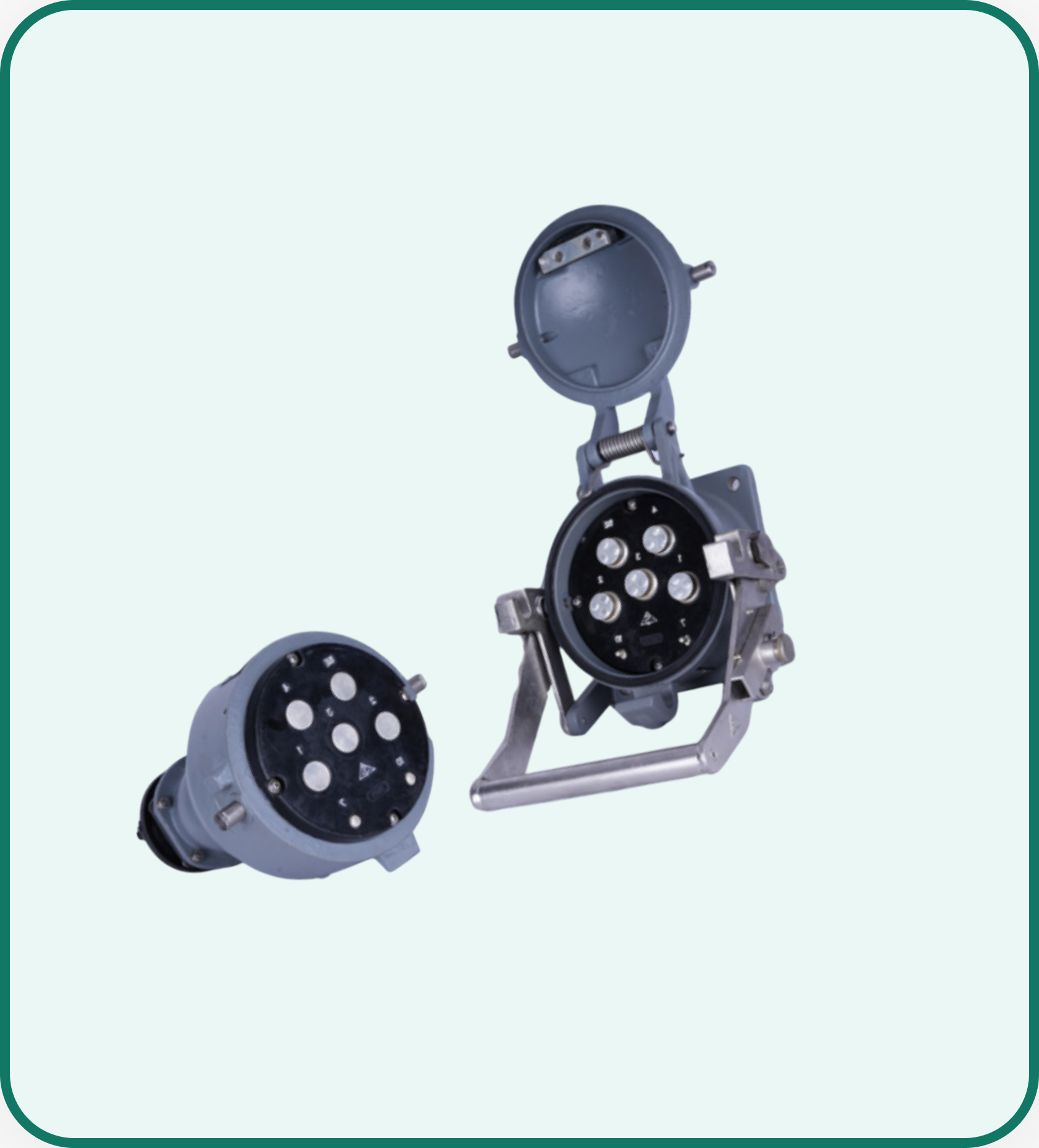

S.Internationals PC-A Series Connectors is for catering to needs for a diverse range of industrial and commercial applications.
In today’s fast-paced world, reliable electrical connections are crucial, especially in sectors like construction, manufacturing, and energy. The PC-A Series connectors are designed to meet the demanding requirements of these industries, offering exceptional durability and performance.
Whether powering heavy machinery, facilitating seamless communication in control systems, or ensuring safety in high-voltage environments, these connectors provide peace of mind through their robust design. Their high amp rating and voltage capability make them ideal for situations where consistent and safe power supply is paramount.
| Number of contacts | 5 Contacts (3Phase, 1neutral, 1 Earth) + 2 pilot contacts |
| Rated voltage | 4KV AC/DC |
| Rated current | 500A (can be customised as per requirement) |
| Terminal type | crimp connection, Socket: M16 screw connection |
| Wire gauge | Upto 185 mm² |
| IP rating (IEC 60529,
IP code) |
When mated: IP65
Receptacle with lid closed: IP65 |
| Shock, Vibration (IEC 61373) | Category 1, Class B |
| Operating temperature | - 50 °C … + 85 °C |
| Mechanical endurance (IEC 60512-9-1) | 1,000 mating cycles |
| Safety | Can be made lock out tagout compliant as per requirement |
| Fire Rating | UL94-V0 rated and meets requirements for fire protection according to EN 45545 |
