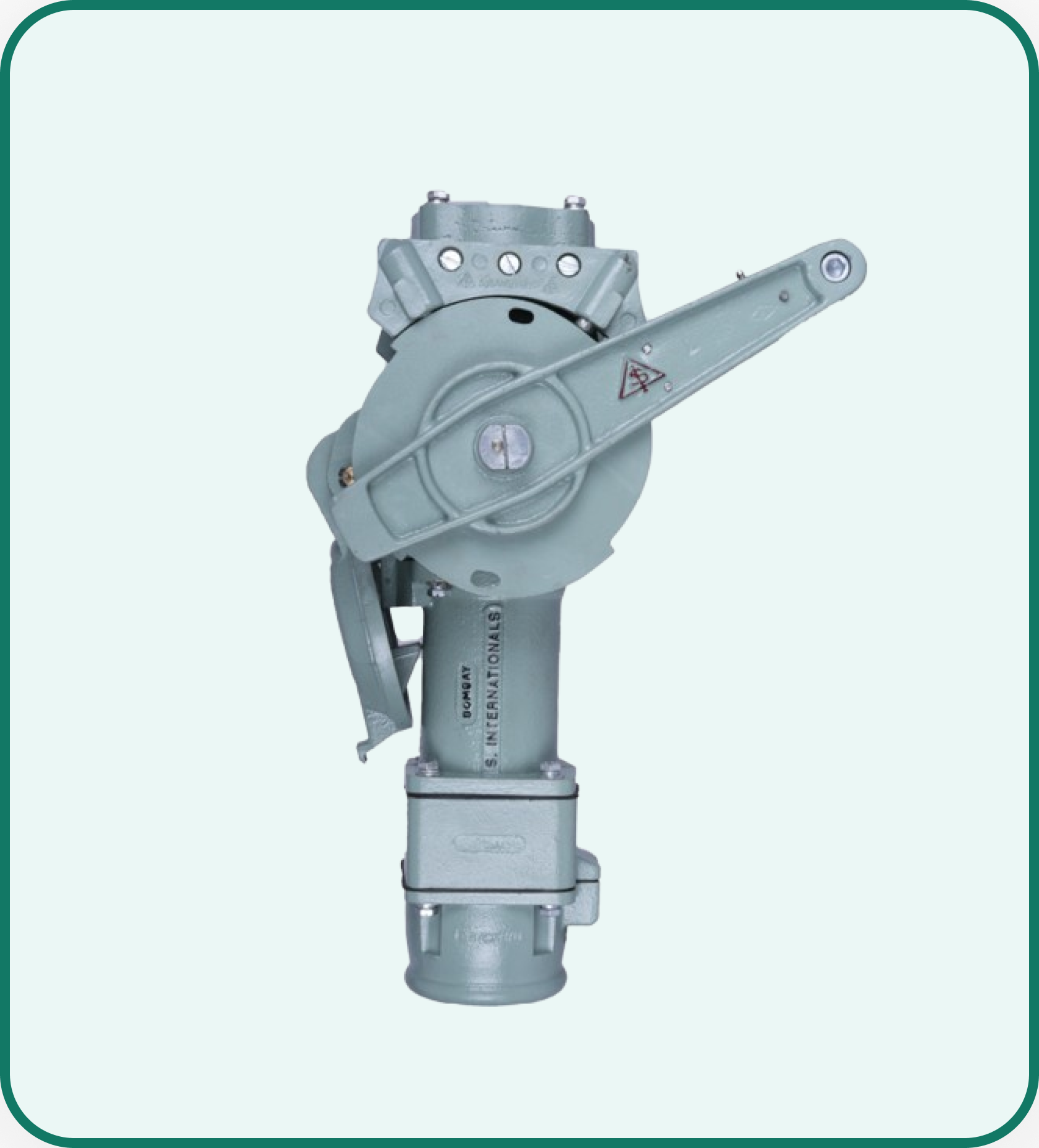

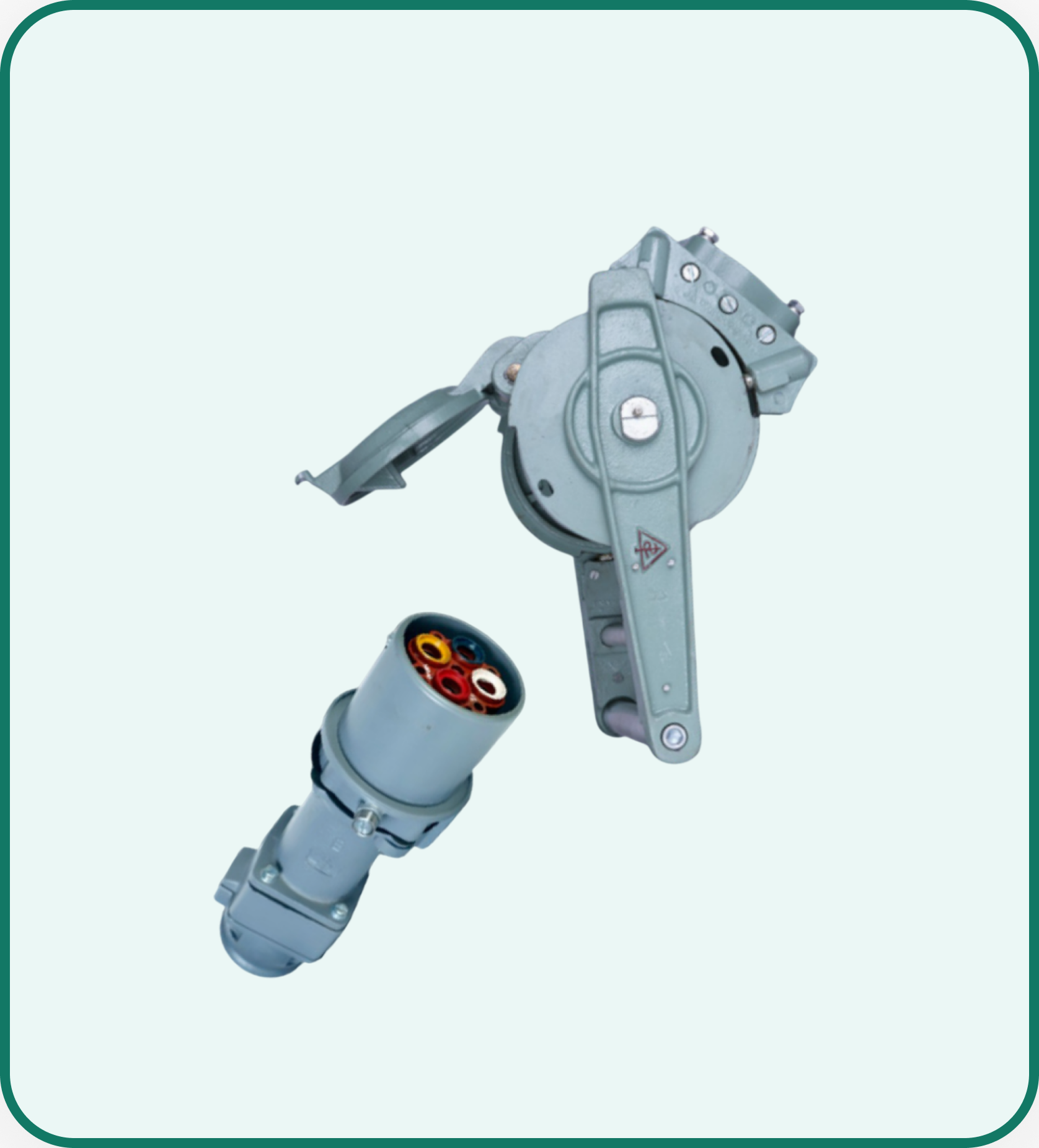

S.Internationals PC-B Series Connectors is for catering to needs for a robust and versatile solution in high-capacity power applications.
In industries that demand reliable power distribution, such as energy generation, heavy machinery operations, and large-scale construction, the PC-B Series Connectors provide the ideal combination of strength and performance. Designed to support a capacity range of 200-300A at 3KV, these connectors ensure that your electrical systems function seamlessly under high loads.
Constructed with a rugged aluminum die-cast housing, these connectors are built to endure the challenges of harsh environments. The 8-pin configuration allows for versatile connections while ensuring continuous low contact resistance, making them suitable for high-performance applications. With a wire gauge capacity of up to 120 mm², these connectors accommodate a variety of cable sizes, enhancing their adaptability.
| Rated voltage | 3KV AC/DC |
| Number of contacts | 8Pin Configuration (3Phase, 1- Neutral, 2-Earthing, 2 pilot contacts) |
| Rated current | 300A |
| Terminal type | Crimp connection |
| Wire gauge | Upto 120 mm² |
| IP rating (IEC 60529, IP code) | When mated: IP65 Receptacle with lid closed: IP65 |
| Shock, Vibration (IEC 61373) | Category 1, Class B |
| Operating temperature | - 50 °C … + 85 °C |
| Mechanical endurance (IEC 60512-9-1) | 500 mating cycles |
