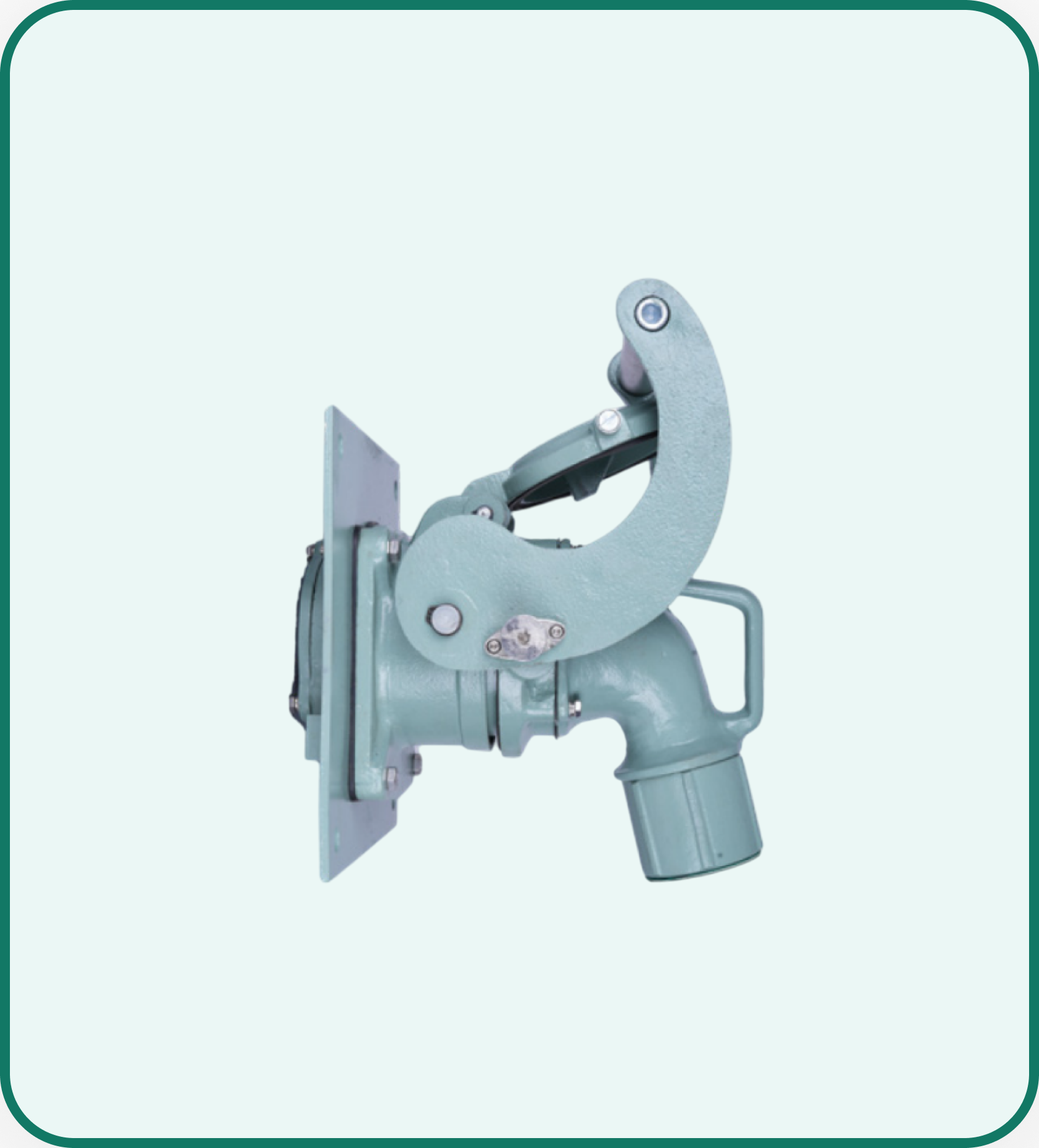

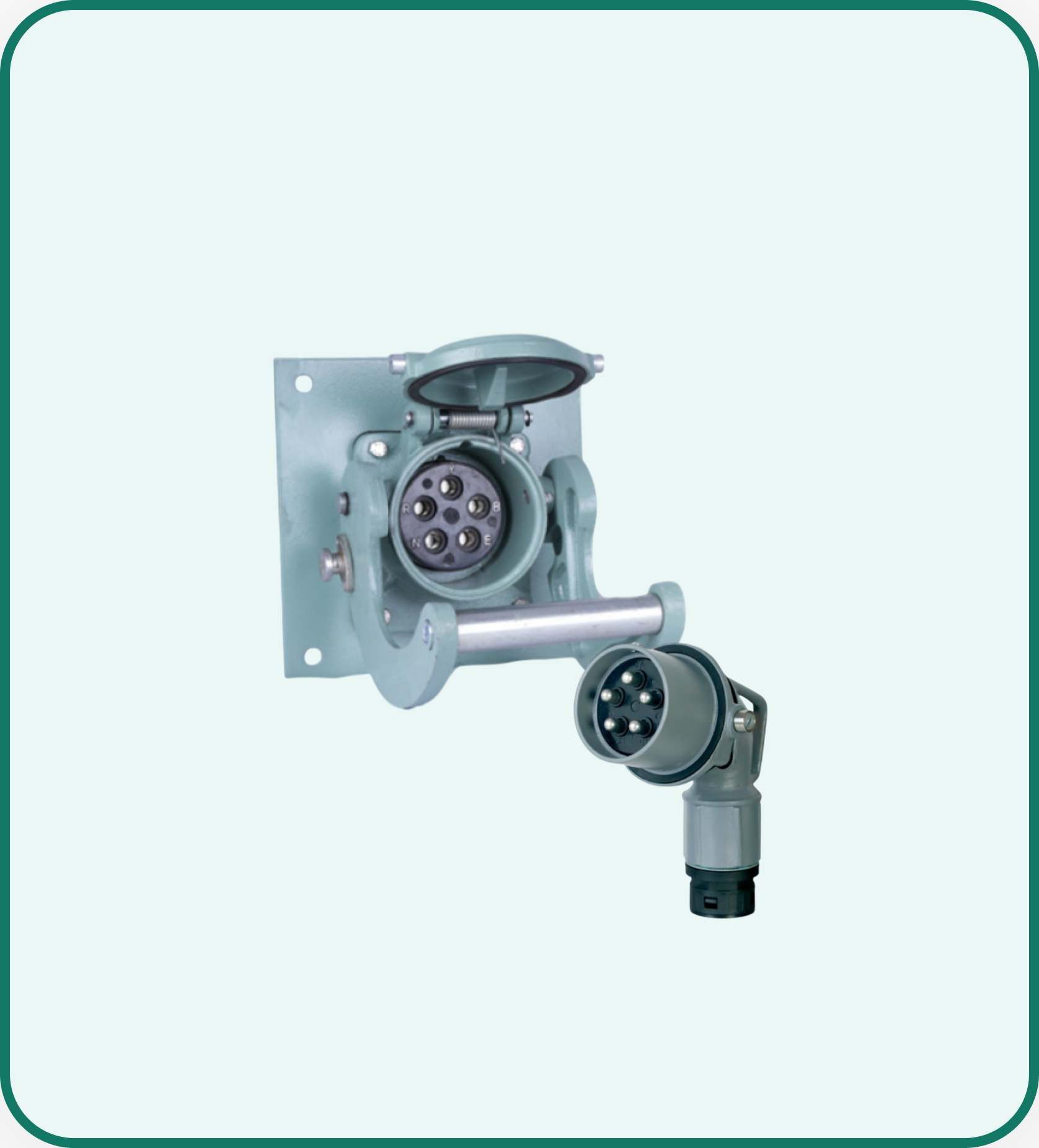

S.Internationals PC-C Series Connectors is for catering to needs for a compact and efficient solution in mid-range power applications.
In a landscape where space and reliability are at a premium, the PC-C Series Connectors provide an ideal solution for industries such as manufacturing, renewable energy, and event production. With a capacity range of 125-200A at 2KV, these connectors are engineered to deliver dependable performance without compromising on space.
Crafted from rugged aluminum die-cast housing, these connectors are designed to withstand the rigors of industrial environments while ensuring longevity. Featuring high-quality contacts that maintain continuous low contact resistance, the PC-C series guarantees efficient power transmission, vital for maintaining operational integrity.
The crimp connection accommodates wire gauges up to 50 mm², allowing for flexibility in cable management. Additionally, the option for single or double-ended connectors enhances adaptability, making these connectors suitable for various applications and setups.
| Number of contacts | 5 Contacts (3Phase, 1- Neutral, 1-Earthing) |
| Rated voltage | 2KV AC/DC |
| Rated current | 125 to 200A |
| Terminal type | crimp connection |
| Wire gauge | Upto 50 mm² |
| IP rating (IEC 60529, IP code) | When mated: IP65 Receptacle with lid closed: IP65 |
| Shock, Vibration (IEC 61373) | Category 1, Class B |
| Operating temperature | - 50 °C … + 85 °C |
| Mechanical endurance (IEC 60512-9-1) | 500 mating cycles |
